Good wooden cross plans do not need to be complicated. They need to answer a few questions before a saw ever touches the board: how large should the piece be, where should the crossbar sit, how will the two parts meet, and where will the finished work live? When those decisions are made on paper or directly on the lumber, the build becomes calmer and the result feels more deliberate.
This is a simple plan for a wall cross built from two solid boards. It is meant to give a first-time maker a reliable starting point, not force every piece into the same proportions. Use it to make a modest indoor cross, then adjust the dimensions, wood, edge treatment, and finish to give the work its own character.
1. Start with the finished size, not the board
Begin by deciding where the cross will be seen. A small shelf piece and a large wall piece need different visual weight. Put painter's tape on the wall or floor in the rough size you have in mind, then step back. This quick full-size check is more useful than trying to judge proportions from a note in a sketchbook.
For a simple indoor wall cross, start with an upright about twice as long as the crossbar. A 36-inch upright paired with an 18-inch crossbar is a balanced example, but it is only a starting point. A wider, more substantial board can carry a shorter overall form. A narrow board may need more height to keep the cross from looking squat.
- Choose the overall height first.
- Make the crossbar roughly half the length of the upright.
- Place the crossbar a little above the upright's midpoint.
- Keep the overhang equal on both ends of the crossbar.
- Mark the plan at full size on cardboard, kraft paper, or the boards themselves.
There is room to change the character without losing the structure. A higher crossbar leaves a longer lower section. A lower crossbar gives the top more presence. Test those changes with tape or a dry layout, then choose the one that looks right in the intended setting. The cross should read as balanced from across the room, not only when it is on the bench.
2. Make a simple cut list
Once the overall size looks right, turn it into a short cut list. For the 36-inch by 18-inch example, you need one upright and one crossbar, both cut from straight stock of the same thickness. Keeping the thickness equal makes a flush half-lap joint easier to lay out. It also gives the finished cross one clear visual language instead of making the center look like an afterthought.
Example cut list for an indoor wall cross: one upright at 36 inches, one crossbar at 18 inches, both cut from the same dry, straight board stock. The width and thickness are your design choice. Choose enough material to look substantial at the planned scale without making the piece difficult to hang.
Cut the pieces a little long at first if the boards have rough ends or you need to square them after milling. It is easier to trim a clean inch from the end than to discover that a split, a knot, or a wandering saw cut has stolen the exact length you planned. Mark each part clearly so the reference face stays consistent as you work.
Before committing to a species, inspect the wood in person. The USDA Forest Service explains that wood changes moisture content with the surrounding air, and careful drying, handling, and storage help limit unwanted movement. Its guidance on moisture and dimensional change is a useful reminder to choose dry stock and let it settle into the environment where the cross will live.
3. Lay out the crossbar with centerlines
Layout is where a simple plan becomes trustworthy. Find and mark the centerline of the upright. Then mark the centerline of the crossbar. With those two lines, you can position the pieces precisely and check the equal overhang on each side before cutting a joint.
For the 36-inch example, place the center of the crossbar about 15 inches down from the top of the upright. That places the crossbar above the midpoint, leaving a longer lower section without making the top feel too short. Move it an inch in either direction on a dry layout if the board proportions suggest a different balance.
- Choose one face of each board as the reference face.
- Mark a centerline across both boards with a square.
- Place the crossbar on the upright, lining up the centerlines.
- Trace the exact width of the mating board onto each piece.
- Measure the two crossbar overhangs before making any cut.
Do not depend on your eye at this stage. The familiar shape makes small mistakes obvious. A crossbar that is slightly off center or a half-inch uneven at one end will keep looking wrong after the finish goes on. A square, a centerline, and a slow dry fit prevent that problem cheaply.
4. Choose a joint you can cut accurately
A centered half-lap joint is a strong option for this plan. Remove half the thickness from the upright and half from the crossbar where they meet. When the two notches come together, the faces sit flush. The joint gives adhesive a broad surface and lets the cross keep a clean profile through the center.
Mark the joint depth from the actual thickness of the boards. Nominal lumber sizes are rarely the same as the finished thickness in your hand. Set a marking gauge, combination square, or careful pencil line to half the board thickness, then mark the waste clearly. Cut just inside the lines and ease toward the fit. A joint that is snug by hand is better than one that needs force.
A simple overlap can also work for a light decorative piece. In that version, the crossbar sits over the upright and is attached with glue plus screws, dowels, or another reinforcement suited to the material. The overlap is faster, but it adds thickness at the center. Use it because it fits the look and tools you have, not because it lets you skip checking the alignment.
For more joinery and finishing context, the existing guide on making a wooden cross walks through a flush joint, glue-up, sanding, and hanging hardware. Keep the plan simple enough that you can execute it cleanly. A modest joint cut well is more convincing than an elaborate one that is loose or crooked.
5. Dry-fit before glue and finish
Bring the upright and crossbar together on a flat surface before adding glue. Check the centerlines, the crossbar overhang, and the faces of the joint. Sight along the upright and make sure it is not twisted. Then step back and look at the cross at the distance where it will be viewed. This is the moment to change a proportion, not after it has been sealed under a finish.
Keep the cross flat while you make these checks. A slightly uneven workbench can make a good layout look skewed, and a board balanced over clamps can hide a small twist. If the joint rocks, find out whether the bottom of the notch needs cleaning or whether the board itself is not flat. Do not use an extra-thick coat of glue to disguise a gap.
Apply adhesive evenly across the mating surfaces, assemble the joint, and use only enough clamping pressure to close it. Follow the adhesive maker's cure time before sanding or hanging the piece. After the cure, recheck that the crossbar is square and that the whole piece rests flat on the bench. Patient setup is part of the finished look.
6. Shape and finish for the place it will live

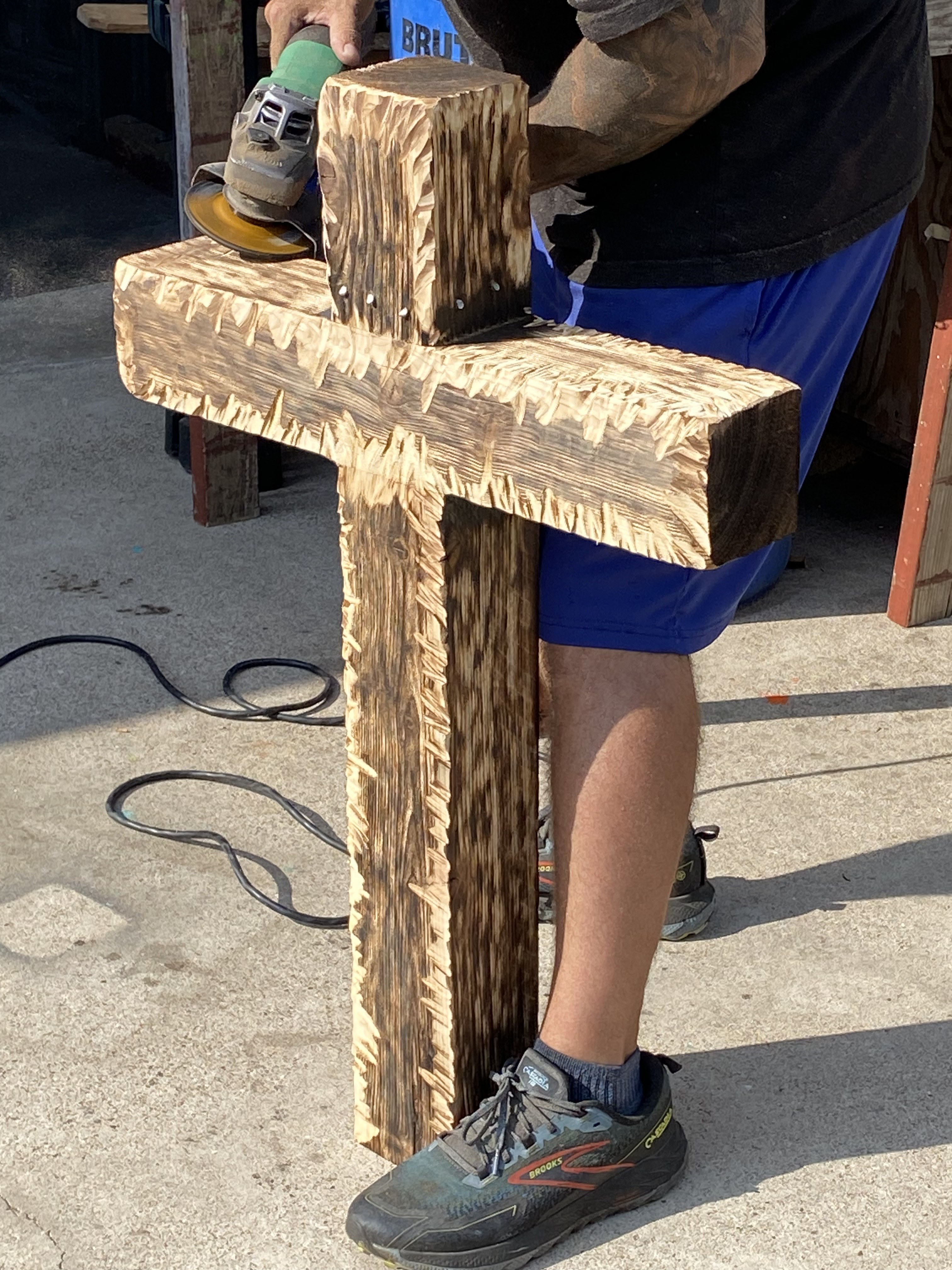

Soften sharp edges after the joint is solid. A light chamfer, eased edge, or small round-over can make the cross feel finished in the hand without making it overly decorative. Sand only as much as the material needs. Grain, saw marks, knots, and weathered color can be worth keeping when they contribute to the character of the wood.
For an indoor cross, test the finish on an offcut from the same board. Oil can deepen the grain, while a clear topcoat can add more surface protection. Whatever you use, wipe dust from the joint and corners before applying it, use light coats, and give each coat the full time it needs. The Gothic Ranch Works process is built around that same idea: the details that last are usually handled before the work starts looking finished.
For an outdoor cross, a plan needs more than an exterior finish. Wood continues to respond to humidity and seasonal change, and protective coatings slow that movement rather than stopping it. WOOD Magazine's guidance on wood movement makes the practical point: wide solid-wood parts need room to adjust as conditions change. Use exterior-suitable wood and fasteners, keep end grain away from standing water, and give rain a way to drain instead of collecting in joints.
7. Plan the hanging or standing support
A wall cross needs hardware that fits its weight and the wall material. Lay out the hanger on the back before the last coat of finish dries, keeping it level and centered. A larger, heavier piece deserves hardware that spreads the load and a mounting point rated for the wall. When the cross is a gift, add clear hanging guidance so the recipient does not have to guess.
If the cross needs to stand on a table, floor, porch, or gathering space, plan the base at the same time as the upright. A base added after the cross is finished often looks undersized or fights the proportions you worked to establish. The companion guide on making a wooden cross stand up covers slotted feet, bracing, testing the footprint, and the added demands of outdoor placement.
For a large outdoor cross, a freestanding wood foot is often not enough. The site, wind exposure, soil, height, and permanence all matter. A buried post, substantial anchored base, or other support should be planned for the actual installation instead of treated as a craft-project detail.
When a custom cross is the better plan
A simple wooden cross can be a meaningful project, especially when the process is part of the gift. But some ideas need a different level of planning: a large scale, a distinctive piece of reclaimed wood, steel detail, a charred finish, a memorial purpose, or a cross designed for a specific wall or outdoor setting. Those pieces benefit from more than a generic cut list.
Gothic Ranch Works builds custom wood crosses as individual pieces, with material, setting, scale, and character considered together. The current work shows how much the wood itself can change the outcome. For a piece with a particular story or a demanding setting, the inquiry page is the right place to start a conversation.
A final wooden cross plans checklist
- The finished height and width are chosen for the actual display location.
- The upright and crossbar are marked from centerlines, not placed by eye.
- The crossbar has equal overhang on both sides.
- The joint is dry-fitted, square, and flush before glue is applied.
- The finish suits the indoor or outdoor setting.
- The hanging or standing support is planned before the piece is complete.
The best wooden cross plans leave enough room for the wood to have a voice. Start with a balanced layout, cut the joinery with care, and let one or two material choices carry the finished piece. That is usually all it needs.
